The Texas Instruments MSP430 family of ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 µs.



The MSP430F15x/16x/161x series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter, dual 12-bit D/A converter, one or two universal serial synchronous/asynchronous communication interfaces (USART), I2C, DMA, and 48 I/O pins. In addition, the MSP430F161x series offers extended RAM addressing for memory-intensive applications and large C-stack requirements.



Typical applications include sensor systems, industrial control applications, hand-held meters, etc.



特性



Low Supply-Voltage Range: 1.8 V to 3.6 V

Ultralow Power Consumption

Active Mode: 330 µA at 1 MHz, 2.2 V

Standby Mode: 1.1 µA

Off Mode (RAM Retention): 0.2 µA

Five Power-Saving Modes

Wake-Up From Standby Mode in Less Than 6 µs

16-Bit RISC Architecture,

125-ns Instruction Cycle Time

Three-Channel Internal DMA

12-Bit Analog-to-Digital (A/D) Converter

With Internal Reference, Sample-and-Hold,

and Autoscan Feature

Dual 12-Bit Digital-to-Analog (D/A)

Converters With Synchronization

16-Bit Timer_A With Three

Capture/Compare Registers

16-Bit Timer_B With Three or Seven

Capture/Compare-With-Shadow Registers

On-Chip Comparator

Serial Communication Interface (USART0),

Functions as Asynchronous UART or

Synchronous SPI or I2C™ Interface

Serial Communication Interface (USART1),

Functions as Asynchronous UART or

Synchronous SPI Interface

Supply Voltage Supervisor/Monitor With

Programmable Level Detection

Brownout Detector

Bootstrap Loader

Serial Onboard Programming, No External

Programming Voltage Needed, Programmable

Code Protection by Security Fuse

Family Members Include

MSP430F155

16KB+256B Flash Memory

512B RAM

MSP430F156

24KB+256B Flash Memory

1KB RAM

MSP430F157

32KB+256B Flash Memory,

1KB RAM

MSP430F167

32KB+256B Flash Memory,

1KB RAM

MSP430F168

48KB+256B Flash Memory,

2KB RAM

MSP430F169

60KB+256B Flash Memory,

2KB RAM

MSP430F1610

32KB+256B Flash Memory

5KB RAM

MSP430F1611

48KB+256B Flash Memory

10KB RAM

MSP430F1612

55KB+256B Flash Memory

5KB RAM

Available in 64-Pin QFP Package (PM) and

64-Pin QFN Package (RTD)

For Complete Module Descriptions, See the

MSP430x1xx Family User’s Guide,

Literature Number SLAU049

I2C is a registered trademark of Philips Incorporated.

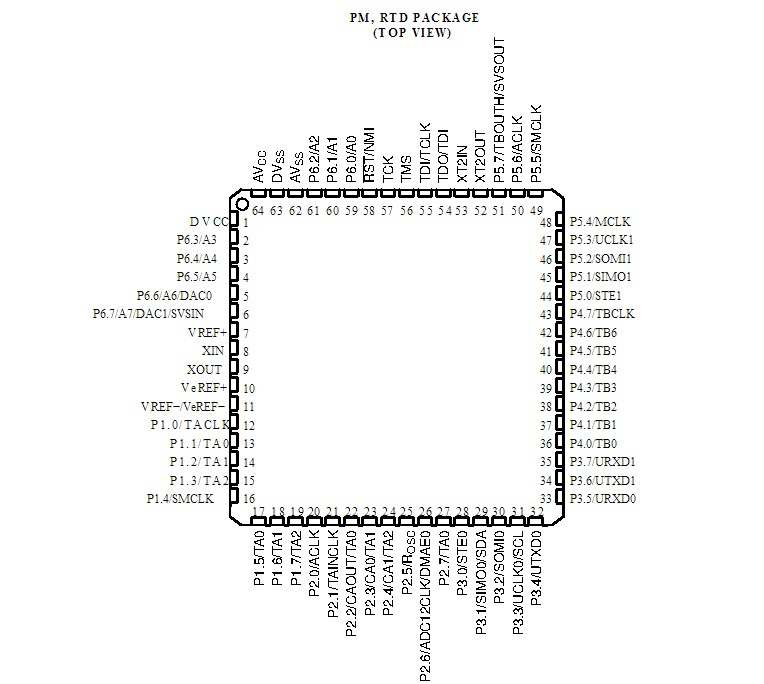

芯片管脚如下：
